Alumax Extreme

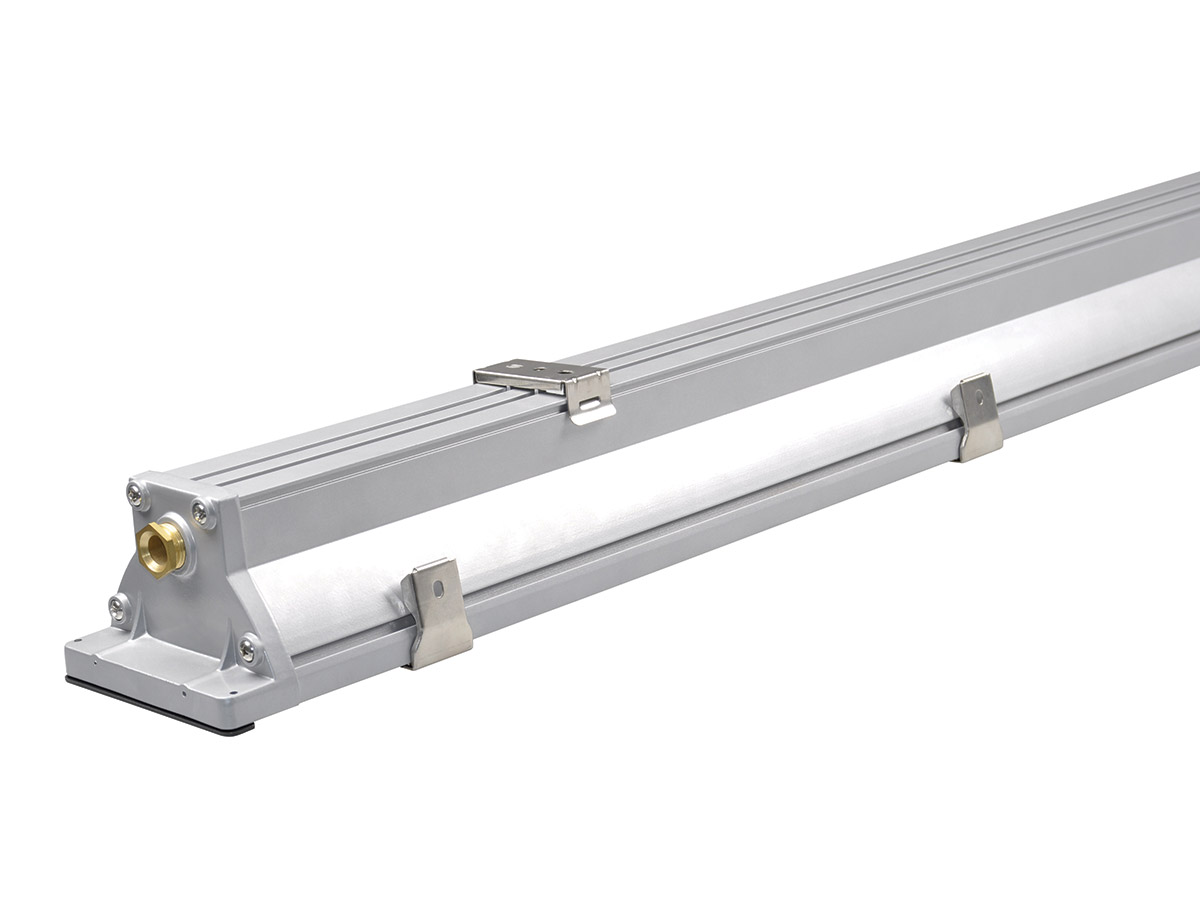

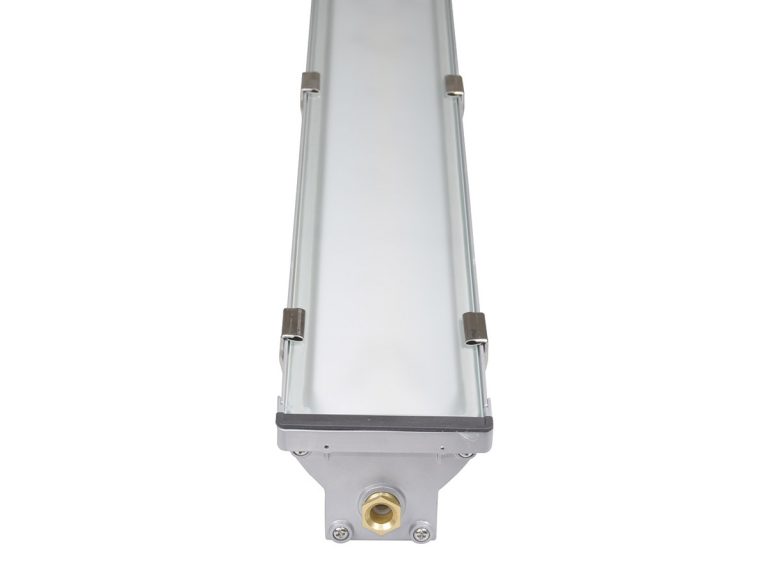

Industrial LED light fitting made of grey aluminium alloy intended for extreme temperatures from -40°C to +60°C, with high chemical resistance and a diffuser made of tempered safety glass the light fitting is suitable for indoor and outdoor applications with extreme ambient temperatures.

The fitting is designed especially for refrigeration, cold stores, bakeries, heating plants, metallurgical lines, glass factories and other premises. The Alumax Extreme also eliminates the danger of explosions of gases, dust and flammable vapors.



Additional information key:

**1.1= single fitting 2.1 = twin fitting**

Datasheet
LDT File
Category: .

Applications

  • Industrial
  • Factories
  • Garages
  • Workshops
  • Agricultural Buildings

Specification

  • Standard model – CRI > 80: 4000 K
  • Light fitting protection: IP66
  • Minimum ambient temperature: ta = -40 °C
  • Lifetime: 50,000 hours
  • Maximum ambient temperature: ta = 60 °C

Construction

  • Side covers: grey aluminium alloy with plastic side plates for fixation and suspension of glass at assembly, surface treated with powder-coated colour
  • Diffuser: tempered glass
  • Clips: stainless
  • Reflector: steel sheet, white colour (RAL 9003)
  • Terminal block: screwless, three-pole (basic version)
  • Sealing: polyurethane sealing (PUR) in body groove
  • Brass cable glands
  • Brass ventilation plugs

 Options

  • PIR sensor – detects movement making it an intelligent fitting.  Dimming if movement is not detected
  • Stainless steel clips
  • DALI driver
  • Emergency
LENGTH MM

1.1524 / 2.1224 / 1.1524

HEIGHT MM

75 / 75 / 75

WIDTH MM

105 / 105 / 105

WATTS

36 / 55 / 68

LUMENS

4250 / 6710 / 8390

LM/W

118 / 122 / 123
